Chaotic-Map Key Streaming

Chaotic-Map Key Streaming for eVTOL Authentication

Undergraduate research · University of Southern Mississippi · 2024 – present

An FPGA authentication scheme for eVTOL drones built on Chebyshev chaotic maps and SHA in VHDL-2019. Keys are generated from a shared seed on demand rather than stored, so a fleet’s key material never sits on the aircraft.

1.68 ms
800 key generations
25 KB
Memory overhead
10 ms
Auth latency

Figures

Chaotic-Map Key Streaming, figure 1

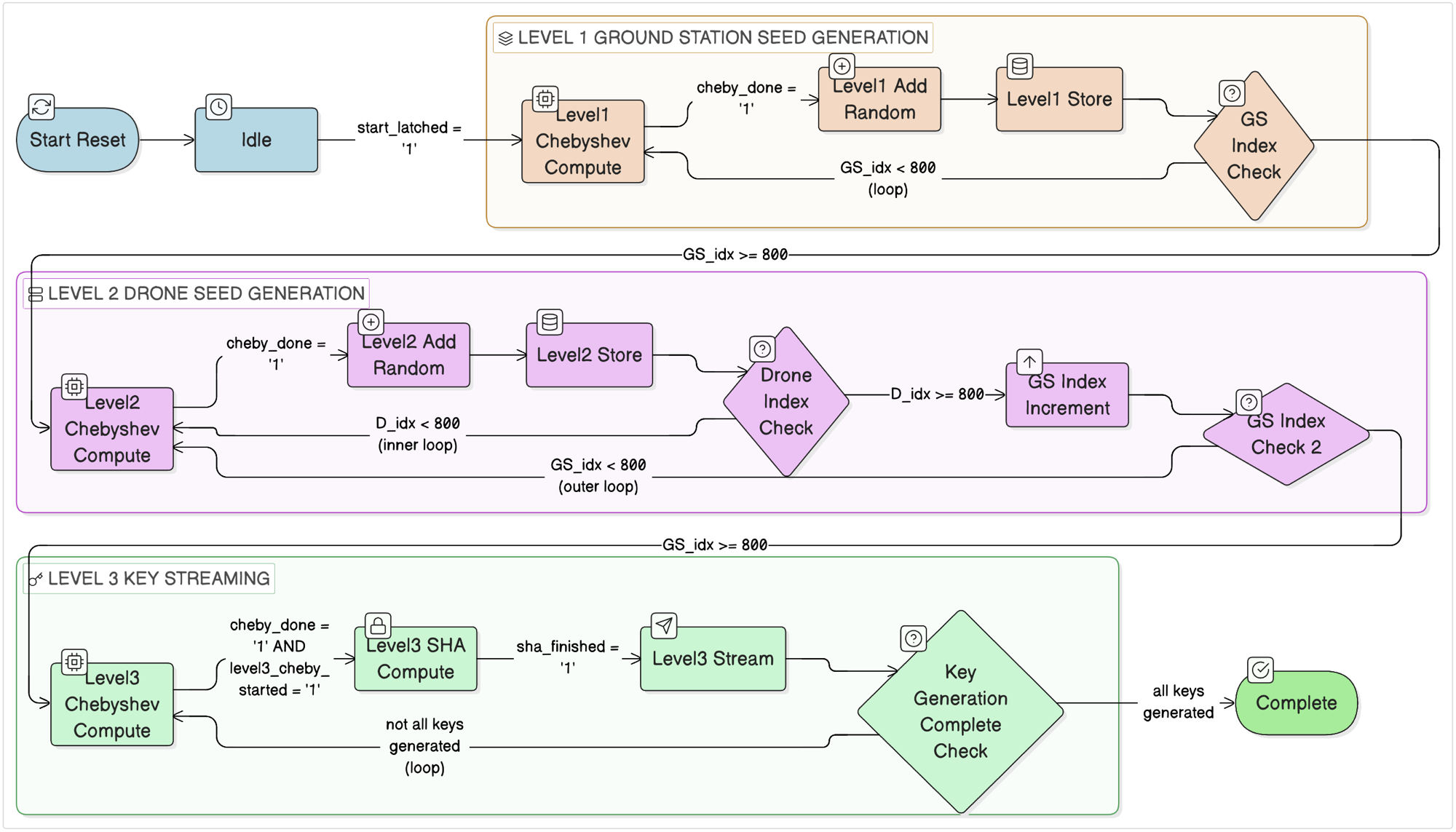

Three levels of the state machine: ground-station seeds, then per-drone seeds, then SHA key streaming.
Chaotic-Map Key Streaming, figure 1Chaotic-Map Key Streaming, figure 2

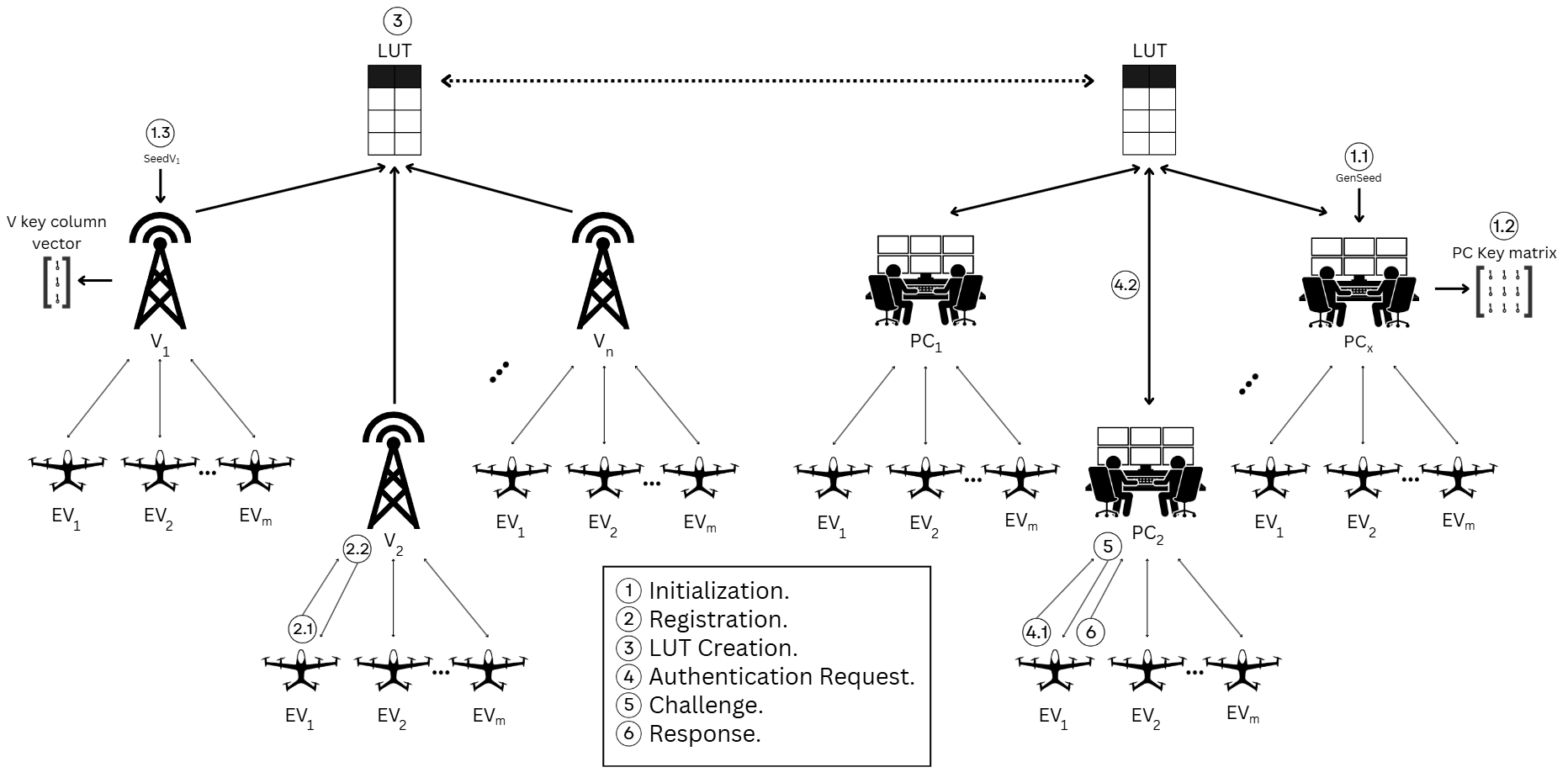

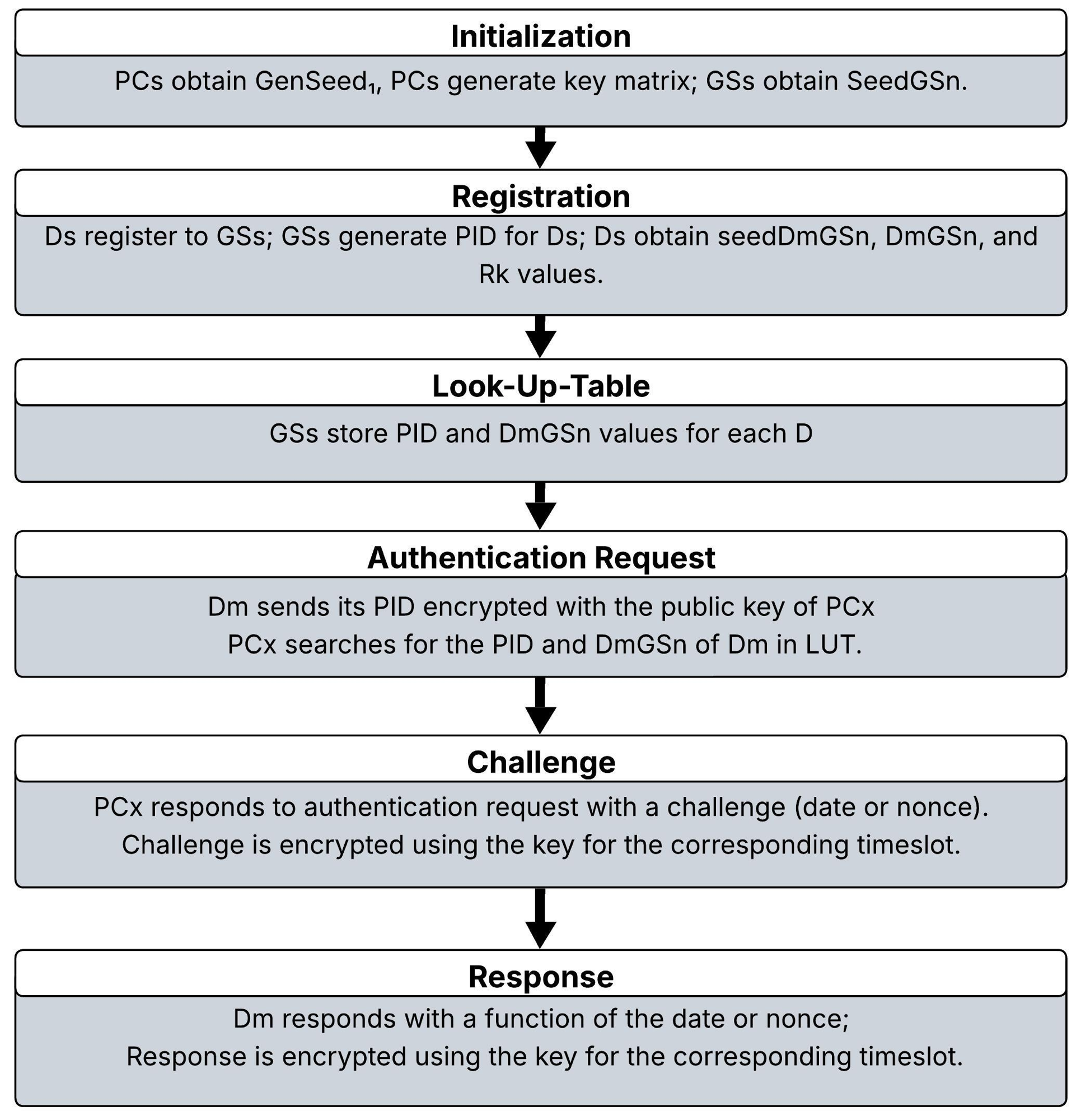

Ground stations and pilot consoles share one look-up table; registration runs through challenge and response.

VHDL · RTL design · AMD Vivado · FPGA · Cryptography
